Run details

Run name R-7
Date range 6 Mar 2020 19:00 ÷ 9 Mar 2020 15:00
1st detector diameter 5 µm (aperture)
2nd detector diameter 200 µm
Avg. wavepacket spread ~13 µm
Number of cycles 81
Number of measurements 214 318
Total time of measurements 29 hours 46 minutes
Mean transmittance quotient 100.45 ±0.12 %
Mean transmittance difference 0.45 ±0.12 %
Previous run (R-6) All runs (Up) Next run (R-8)

Measuring cycles plots

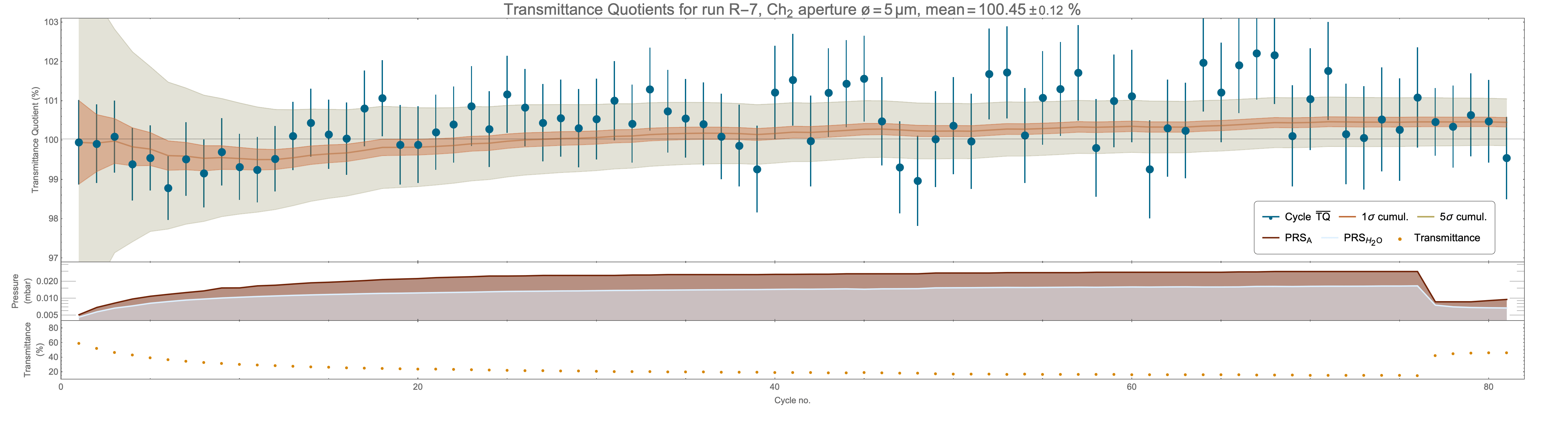

Mean transmittance quotients along with their 1σ standard errors for the individual cycles and the bands showing the accumulated 1σ and 5σ measurement uncertainties (standard error). Both total and partial pressure readings are superimposed. X-axis: cycle number.

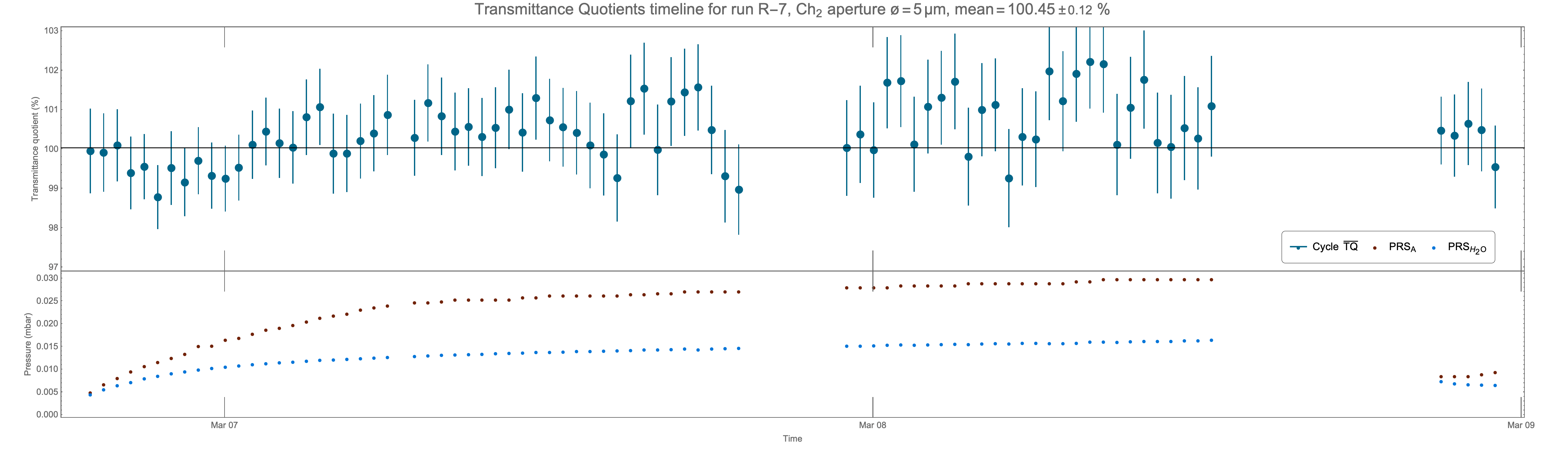

Mean transmittance quotients along with their 1σ standard errors for the individual cycles. Both total and partial pressure readings are superimposed. X-axis: timeline.

Measuring cycles table

# Id Time No. of
measurements		 Transmittance
difference
1 20200306-1901 Fri 6 Mar 2020 19:01:41 2 612 -0.06 ±1.06 %
2 20200306-1931 Fri 6 Mar 2020 19:31:26 2 668 -0.09 ±0.98 %
3 20200306-2001 Fri 6 Mar 2020 20:01:42 2 620 0.09 ±0.90 %
4 20200306-2031 Fri 6 Mar 2020 20:31:32 2 655 -0.61 ±0.91 %
5 20200306-2101 Fri 6 Mar 2020 21:01:45 2 606 -0.45 ±0.81 %
6 20200306-2131 Fri 6 Mar 2020 21:31:33 2 639 -1.22 ±0.80 %
7 20200306-2201 Fri 6 Mar 2020 22:01:46 2 619 -0.49 ±0.92 %
8 20200306-2231 Fri 6 Mar 2020 22:31:36 2 661 -0.85 ±0.85 %
9 20200306-2301 Fri 6 Mar 2020 23:01:46 2 614 -0.30 ±0.84 %
10 20200306-2331 Fri 6 Mar 2020 23:31:38 2 650 -0.68 ±0.83 %
11 20200307-0001 Sat 7 Mar 2020 00:01:46 2 621 -0.76 ±0.82 %
12 20200307-0031 Sat 7 Mar 2020 00:31:39 2 655 -0.48 ±0.82 %
13 20200307-0101 Sat 7 Mar 2020 01:01:48 2 617 0.10 ±0.86 %
14 20200307-0131 Sat 7 Mar 2020 01:31:41 2 653 0.44 ±0.85 %
15 20200307-0201 Sat 7 Mar 2020 02:01:50 2 626 0.14 ±0.87 %
16 20200307-0231 Sat 7 Mar 2020 02:31:42 2 653 0.04 ±0.91 %
17 20200307-0301 Sat 7 Mar 2020 03:01:49 2 624 0.80 ±0.95 %
18 20200307-0331 Sat 7 Mar 2020 03:31:42 2 650 1.06 ±0.95 %
19 20200307-0401 Sat 7 Mar 2020 04:01:50 2 622 -0.12 ±1.00 %
20 20200307-0431 Sat 7 Mar 2020 04:31:45 2 659 -0.12 ±0.96 %
21 20200307-0501 Sat 7 Mar 2020 05:01:53 2 625 0.20 ±0.94 %
22 20200307-0531 Sat 7 Mar 2020 05:31:46 2 658 0.40 ±0.95 %
23 20200307-0601 Sat 7 Mar 2020 06:01:53 2 617 0.86 ±1.00 %
24 20200307-0701 Sat 7 Mar 2020 07:01:55 2 615 0.28 ±0.95 %
25 20200307-0731 Sat 7 Mar 2020 07:31:46 2 663 1.16 ±0.96 %
26 20200307-0801 Sat 7 Mar 2020 08:01:53 2 636 0.83 ±0.97 %
27 20200307-0831 Sat 7 Mar 2020 08:31:46 2 675 0.44 ±0.97 %
28 20200307-0901 Sat 7 Mar 2020 09:01:54 2 649 0.56 ±0.97 %
29 20200307-0931 Sat 7 Mar 2020 09:31:46 2 671 0.30 ±0.98 %
30 20200307-1001 Sat 7 Mar 2020 10:01:56 2 652 0.53 ±1.01 %
31 20200307-1031 Sat 7 Mar 2020 10:31:50 2 683 1.00 ±0.99 %
32 20200307-1101 Sat 7 Mar 2020 11:01:58 2 658 0.42 ±0.98 %
33 20200307-1131 Sat 7 Mar 2020 11:31:48 2 688 1.29 ±1.04 %
34 20200307-1201 Sat 7 Mar 2020 12:01:59 2 661 0.73 ±1.04 %
35 20200307-1231 Sat 7 Mar 2020 12:31:50 2 687 0.55 ±0.98 %
36 20200307-1301 Sat 7 Mar 2020 13:01:56 2 664 0.41 ±1.04 %
37 20200307-1331 Sat 7 Mar 2020 13:31:51 2 690 0.09 ±1.07 %
38 20200307-1401 Sat 7 Mar 2020 14:01:59 2 660 -0.14 ±1.03 %
39 20200307-1431 Sat 7 Mar 2020 14:31:52 2 695 -0.74 ±1.09 %
40 20200307-1501 Sat 7 Mar 2020 15:01:59 2 676 1.21 ±1.17 %
41 20200307-1531 Sat 7 Mar 2020 15:31:52 2 698 1.53 ±1.15 %
42 20200307-1601 Sat 7 Mar 2020 16:01:59 2 672 -0.02 ±1.14 %
43 20200307-1631 Sat 7 Mar 2020 16:31:53 2 699 1.20 ±1.11 %
44 20200307-1701 Sat 7 Mar 2020 17:01:58 2 674 1.44 ±1.09 %
45 20200307-1731 Sat 7 Mar 2020 17:31:53 2 705 1.56 ±1.08 %
46 20200307-1801 Sat 7 Mar 2020 18:01:59 2 676 0.48 ±1.11 %
47 20200307-1831 Sat 7 Mar 2020 18:31:55 2 693 -0.70 ±1.16 %
48 20200307-1901 Sat 7 Mar 2020 19:02:02 2 674 -1.04 ±1.13 %
49 20200307-2301 Sat 7 Mar 2020 23:02:05 276 0.02 ±1.20 %
50 20200307-2331 Sat 7 Mar 2020 23:31:58 2 718 0.37 ±1.22 %
51 20200308-0001 Sun 8 Mar 2020 00:02:05 2 689 -0.03 ±1.20 %
52 20200308-0031 Sun 8 Mar 2020 00:31:56 2 724 1.68 ±1.14 %
53 20200308-0101 Sun 8 Mar 2020 01:02:07 2 692 1.72 ±1.15 %
54 20200308-0131 Sun 8 Mar 2020 01:31:58 2 732 0.12 ±1.19 %
55 20200308-0201 Sun 8 Mar 2020 02:02:08 2 697 1.07 ±1.18 %
56 20200308-0231 Sun 8 Mar 2020 02:32:00 2 724 1.30 ±1.18 %
57 20200308-0301 Sun 8 Mar 2020 03:02:06 2 702 1.71 ±1.20 %
58 20200308-0331 Sun 8 Mar 2020 03:32:01 2 728 -0.20 ±1.23 %
59 20200308-0401 Sun 8 Mar 2020 04:02:09 2 703 0.99 ±1.17 %
60 20200308-0431 Sun 8 Mar 2020 04:32:03 2 728 1.12 ±1.16 %
61 20200308-0501 Sun 8 Mar 2020 05:02:08 2 699 -0.75 ±1.23 %
62 20200308-0531 Sun 8 Mar 2020 05:32:01 2 724 0.30 ±1.22 %
63 20200308-0601 Sun 8 Mar 2020 06:02:08 2 707 0.24 ±1.20 %
64 20200308-0631 Sun 8 Mar 2020 06:32:01 2 734 1.97 ±1.23 %
65 20200308-0701 Sun 8 Mar 2020 07:02:11 2 697 1.21 ±1.26 %
66 20200308-0731 Sun 8 Mar 2020 07:32:02 2 733 1.91 ±1.21 %
67 20200308-0801 Sun 8 Mar 2020 08:02:12 2 707 2.21 ±1.17 %
68 20200308-0831 Sun 8 Mar 2020 08:32:07 2 733 2.16 ±1.23 %
69 20200308-0901 Sun 8 Mar 2020 09:02:11 2 712 0.11 ±1.27 %
70 20200308-0931 Sun 8 Mar 2020 09:32:05 2 735 1.04 ±1.28 %
71 20200308-1001 Sun 8 Mar 2020 10:02:11 2 712 1.76 ±1.23 %
72 20200308-1031 Sun 8 Mar 2020 10:32:03 2 740 0.15 ±1.26 %
73 20200308-1101 Sun 8 Mar 2020 11:02:12 2 714 0.05 ±1.30 %
74 20200308-1131 Sun 8 Mar 2020 11:32:07 2 738 0.53 ±1.31 %
75 20200308-1201 Sun 8 Mar 2020 12:02:15 2 713 0.27 ±1.29 %
76 20200308-1231 Sun 8 Mar 2020 12:32:08 2 741 1.08 ±1.26 %
77 20200308-2101 Sun 8 Mar 2020 21:02:16 2 634 0.46 ±0.85 %
78 20200308-2131 Sun 8 Mar 2020 21:32:07 2 672 0.34 ±1.03 %
79 20200308-2201 Sun 8 Mar 2020 22:02:19 2 627 0.64 ±1.04 %
80 20200308-2231 Sun 8 Mar 2020 22:32:06 2 668 0.48 ±1.04 %
81 20200308-2301 Sun 8 Mar 2020 23:02:18 2 627 -0.46 ±1.04 %
